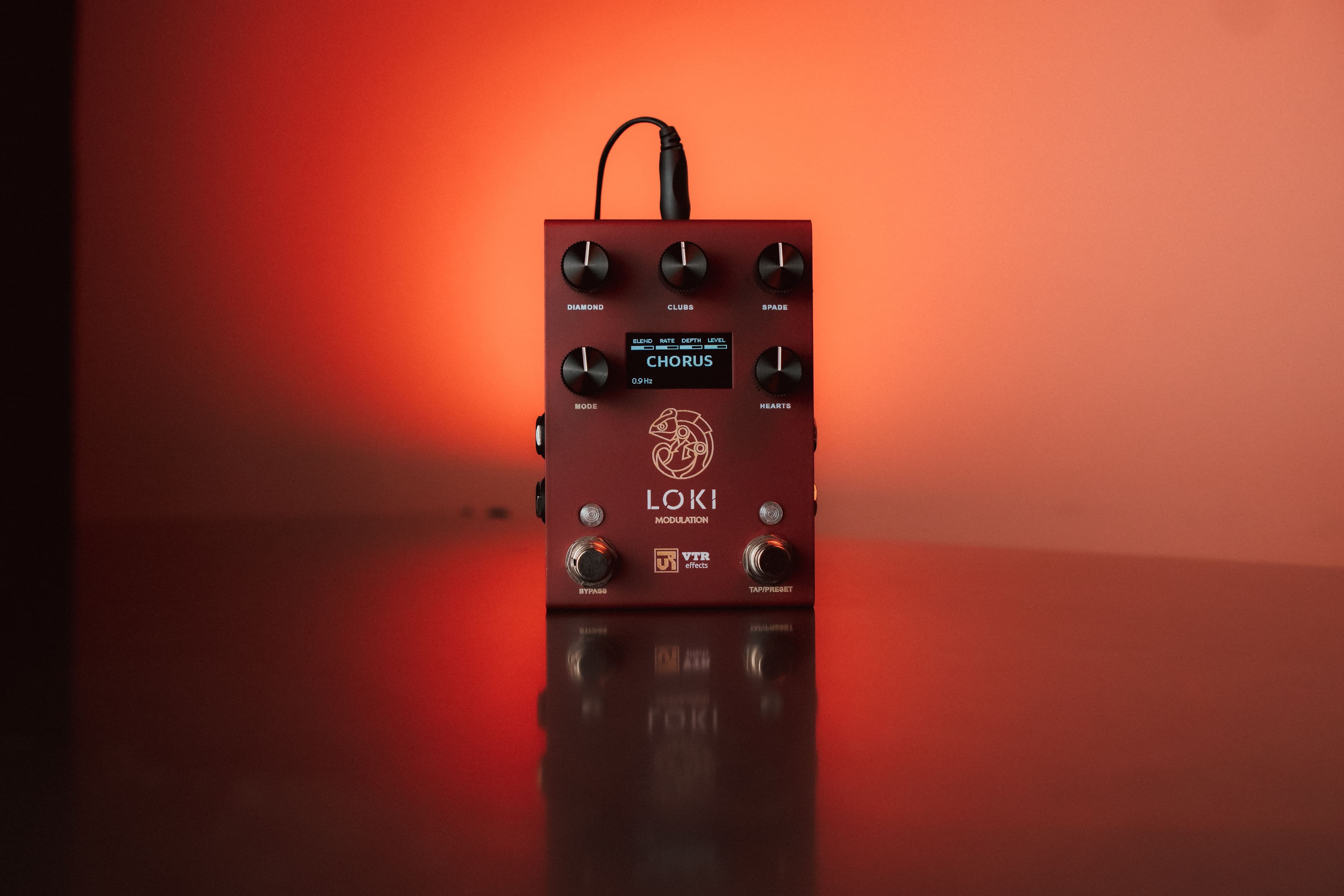

Loki Modulation Gold Series

Straight from the players

“"First Brazilian company to deliver this quality"”

Mateus Starling

@starlingmateus

Features

Advanced Technology for Demanding Musicians

01 / ALGORITHMS

9 Algorithms to Explore Infinite Sound Possibilities

The Loki pedal's algorithms offer high-quality stereo modulation with countless customization options. Its six versatile modes allow you to create everything from classic chorus to deep and experimental phaser, providing unique textures and sonic flexibility for musicians seeking innovation and expressiveness.

9 algorithms: Options from a natural and spacious environment to a dense and immersive effect, with sonic versatility.
Ramp Mode: Smooth transition when pressing and holding the switch, activating a progressive ramp effect.

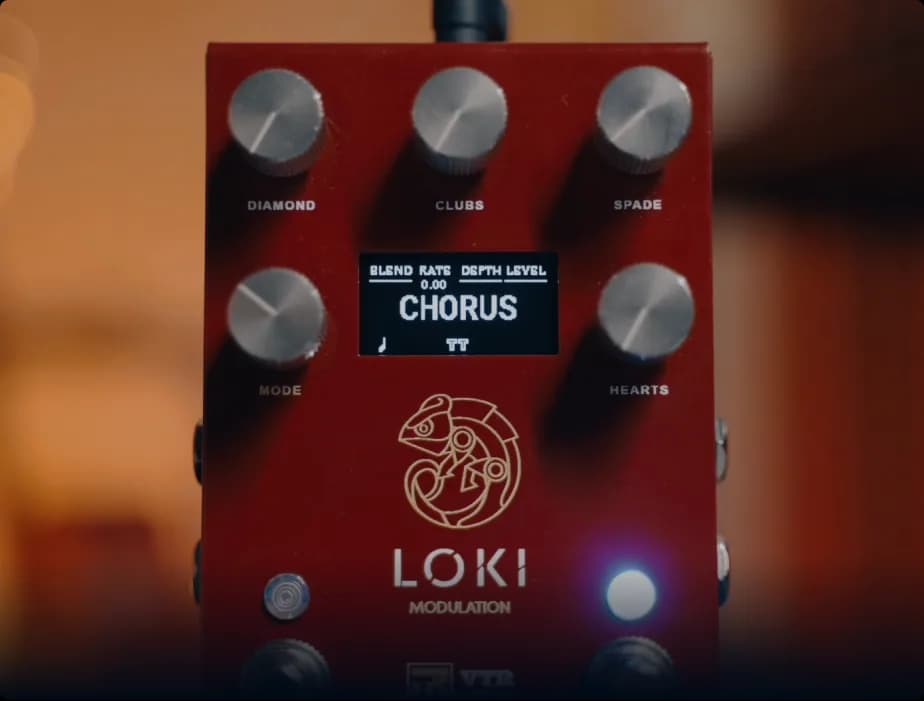

OLED Display: 1.3-inch OLED display that shows information such as delay names and custom presets.

02 / CONNECTIONS

Total Control, Absolute Connection

All Gold Series pedals use the P2 cable for MIDI, allowing easy integration with standard MIDI devices. This offers complete external control in compact and efficient setups

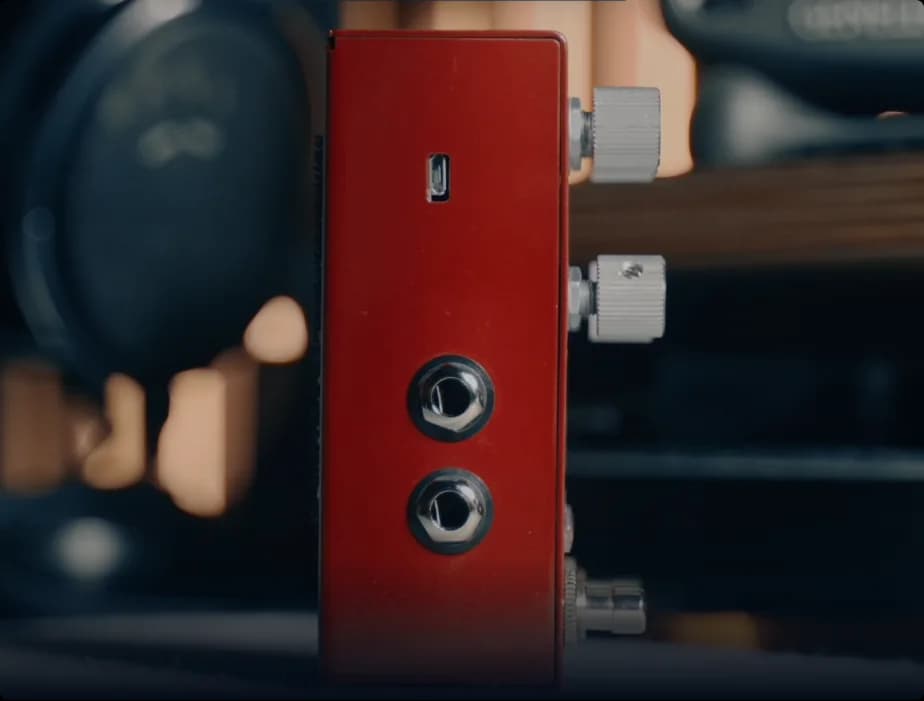

Stereo Connection: Stereo inputs and outputs for an expansive experience, ideal for setups with separate channels.
MIDI Control: MIDI connection, allowing advanced control and complete integration with other devices.
USB Connection: USB connection to facilitate firmware updates and ensure optimal performance.

9 algorithms

Options from a natural and spacious environment to a dense and immersive effect, with sonic versatility.

Stereo Connection

Stereo inputs and outputs for an expansive experience, ideal for setups with separate channels.

Ramp Mode

Smooth transition when pressing and holding the switch, activating a progressive ramp effect.

USB Connection

USB connection to facilitate firmware updates and ensure optimal performance.

MIDI Control

MIDI connection, allowing advanced control and complete integration with other devices.

OLED Display

1.3-inch OLED display that shows information such as delay names and custom presets.

ALGORITHMS

Discover the sounds

Classic chorus effect with smooth and rich modulation.

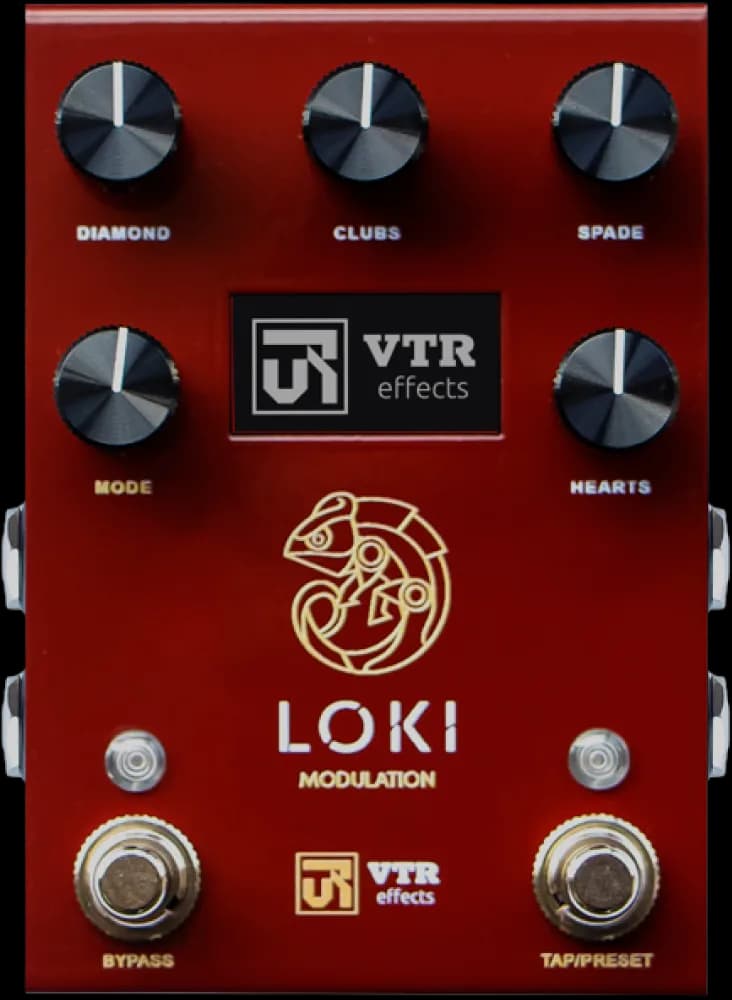

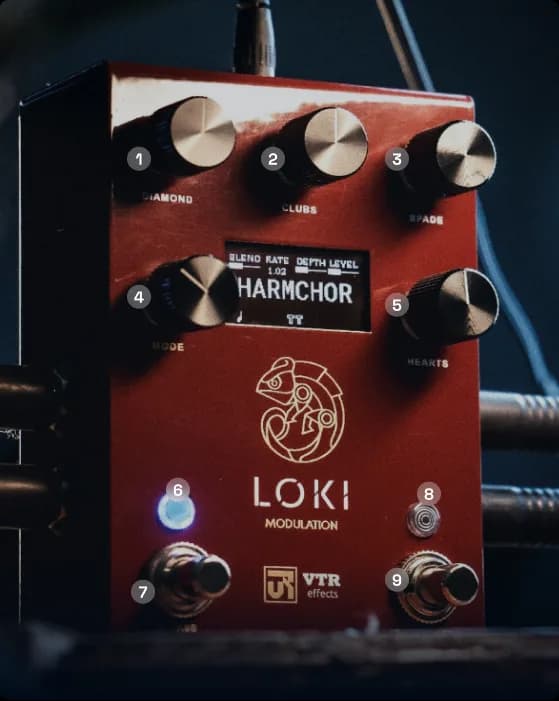

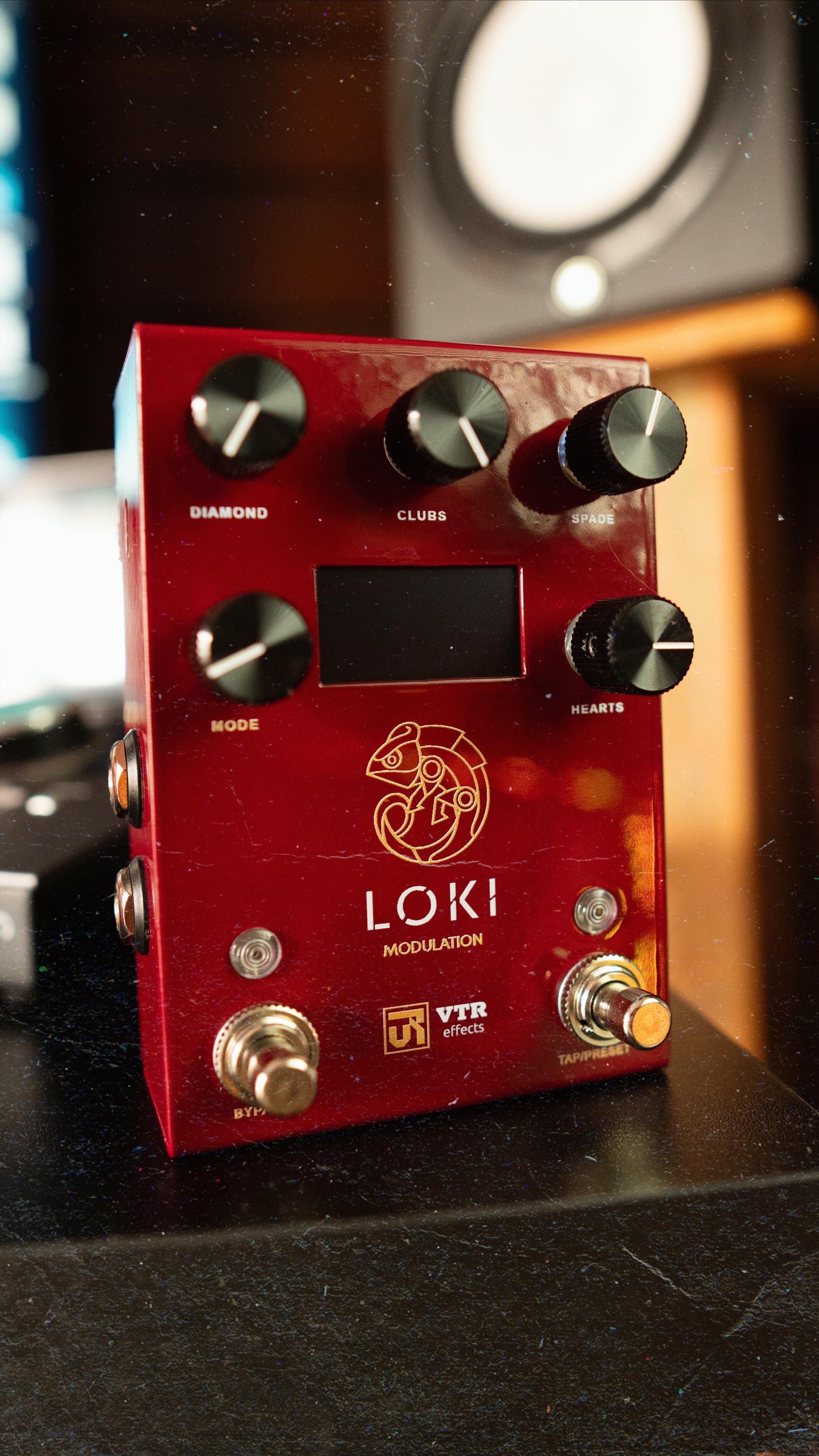

Controls and Connections

Total Control, Absolute Connection

01
Diamond
The Diamond Knob has a specific function in each modulation mode, you will see on the display the function that the knob will be performing in the selected modulation mode.
02
Clubs
The Clubs Knob controls the speed of modulations.
03
Spade
The Spade Knob has a specific function in each modulation mode, you will see on the display the function that the knob will be performing in the selected modulation mode.
04
Mode
This knob is a rotary encoder, that is, it has infinite rotation and can also be clicked. It is through it that you will change the algorithm, access the parameter menu, global menu, name presets, etc.
05
Level
The Level Knob will control the final volume of the pedal.
06
Bypass Led
This LED indicates whether the pedal is activated or not.
07
Bypass Switch
Through the Bypass FootSwitch it is possible to activate/deactivate the effect and control the ramp feature.
08
Tap/Preset Led
It will flash according to the time selected on the pedal, and its color will indicate the operating mode: Blue: Tap Tempo Mode. Red: Preset Mode.
09
Tap/Preset Switch
Through the Tap/Preset FootSwitch it is possible to set the modulation time and navigate between the pedal's preset system.

For more details and functionalities of the pedal, access the complete manual.

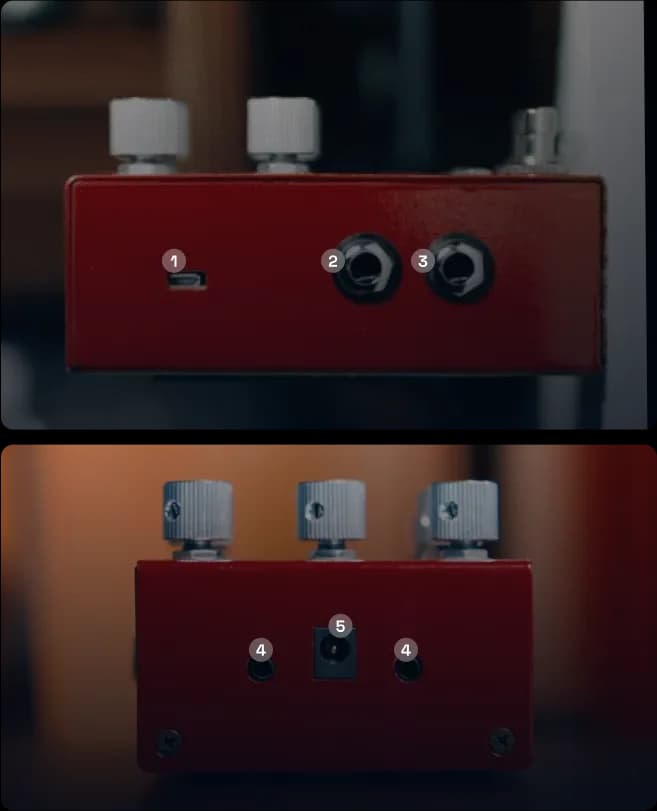

Connections

Everything your setup needs

USB-C
USB-Type C Port
Your Loki's USB port is for firmware updates. USB MIDI and preset transfer system will soon be implemented through the USB port.
L / R
Stereo Connection
To use Loki in stereo mode, connect the L and R inputs and outputs to the respective equipment in the signal chain.
MONO
Mono Connection
To use Loki in Mono mode, connect the instrument to Input-L and the amplifier or next pedal to Output-L. When only Input-L is connected, the signal is duplicated at Input-R, creating a stereo signal in the Loki Modulation.
MIDI
MIDI Input and Output
The new MIDI system of the Gold Series follows the universal MIDI standard, using optocouplers. The connection is made via P2 connectors on the back of the pedal. If your controller does not have a P2 output, a cable will be needed to convert from DIN 5 pins to P2, following the indicated polarity.
DC 9V
Power
The Loki Modulation requires an isolated 9 volt DC power supply, center negative, 2.1 x 5.5 mm barrel connector (the same as standard Boss connectors), which can supply 300 mA (milliamps) of current.
